DI120SIC089D7-AQ
SiC MOSFETs
Product information
| Product family | SiC MOSFETs High Speed High Voltage (Power) Switch |
|---|---|
| Article description |
DI120SIC089D7-AQ
1200V SiC MOSFET
SiC MOSFET, TO-263-7L, N, 46A, 1200V, 89mΩ, 175°C, AEC-Q101 |
| Minimum order quantity | 800 |
| Stock | 0 |
| Customs Tariff Number | 85412900 |
| RoHS / REACH | Yes |
Downloads & Links
Distributor Availability
Technical data
| Article number | DI120SIC089D7-AQ | |
|---|---|---|
|
||
| Type | SMD | |

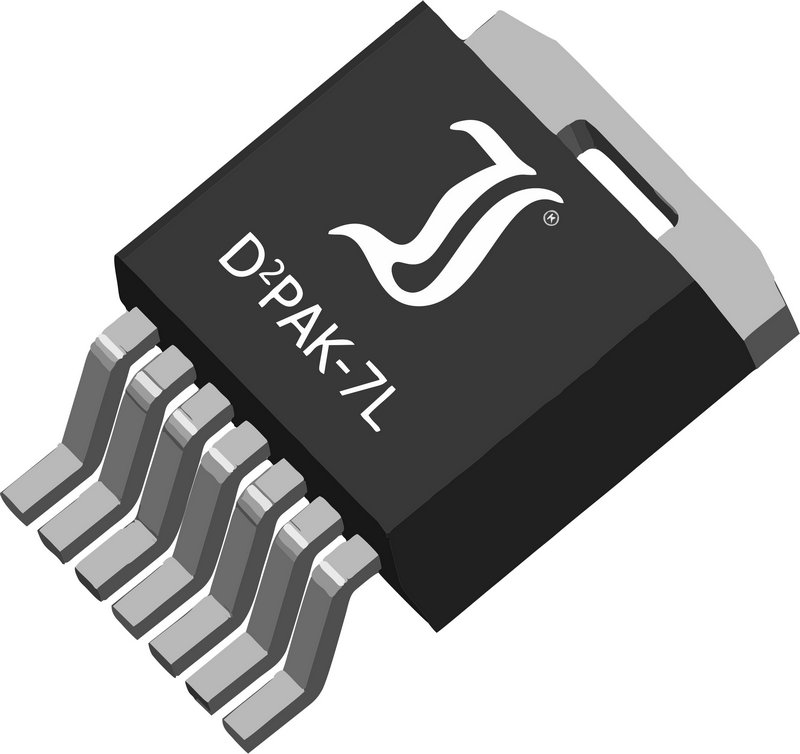

| Package | TO-263-7L | |
| Qualification | AEC-Q101 | |
| Config | Single | |
| Life Cycle | engineering sample | |
| ESD sensitive | No | |
| Polarity | pol | N |
| Drain Current 25°C | ID | 46.000 A |
| Drain Current 100°C | ID | 35.000 A |
| Drain Source Voltage | VDS | 1200 V |
| On-Resistance 1 | RDSon1 | 0.08900 Ω |
| @ ID | 20.000 A | |
| @ VGS | 18 V | |
| Junction Temperature | Tjmax | 175 °C |
| Power Dissipation | Ptot | 263.000 W |
| @ TLoc | 25 °C | |
| Location | ||
| Peak Drain Current | IDM | 105.000 A |
| Threshold Voltage | VGSth min | 2.0 V |
| VGSth max | 4.0 V | |
| Rise Time | tr | 10 ns |
| Fall Time | tf | 9 ns |
| Total Switching Energy | Etotal | 0.15 mJ |
| ESD protection | ESD protected | No |
| On-Resistance 2 | RDSon2 | |
| @ ID | ||
| @ VGS | ||
| Turn-On Delay Time | tD(on) | 14 ns |
| Turn-Off Delay Time | tD(off) | 22 ns |
| Total Gate Charge (4.5V) | Qg (4.5V) | |
| Total Gate Charge (10V) | Qg (10V) | 103.0 nC |
| Gate-Drain Charge | Qgd | 36 nC |
| Single pulse avalanche energy | Eas | |
| Input Capacitance | Ciss | 2451 pF |
| Output Capacitance | Coss | 79 pF |
| Reverse Transfer Capacitance | Crss | 6 pF |
| Reverse recovery charge | Qrr | 76.0 nC |
| Avalanche | Avalanche | No |
