LDI734C3.3ENG
Linear Voltage Regulator
Product information
| Product family | Linear Voltage Regulator Constant DC voltage regulation, Protection against voltage overshoot |
|---|---|
| Article description |
LDI734C3.3ENG
Capacitor-free LDO
VR, DFN-4, 6V, 3.26V, 3.34V |
| Minimum order quantity | 3.000 |
| Stock | 0 |
| Customs Tariff Number | 85423990 |
| RoHS / REACH | Yes |
Downloads & Links
Distributor Availability
Technical data
| Article number | LDI734C3.3ENG | |
|---|---|---|
|
||
| Type | SMD | |

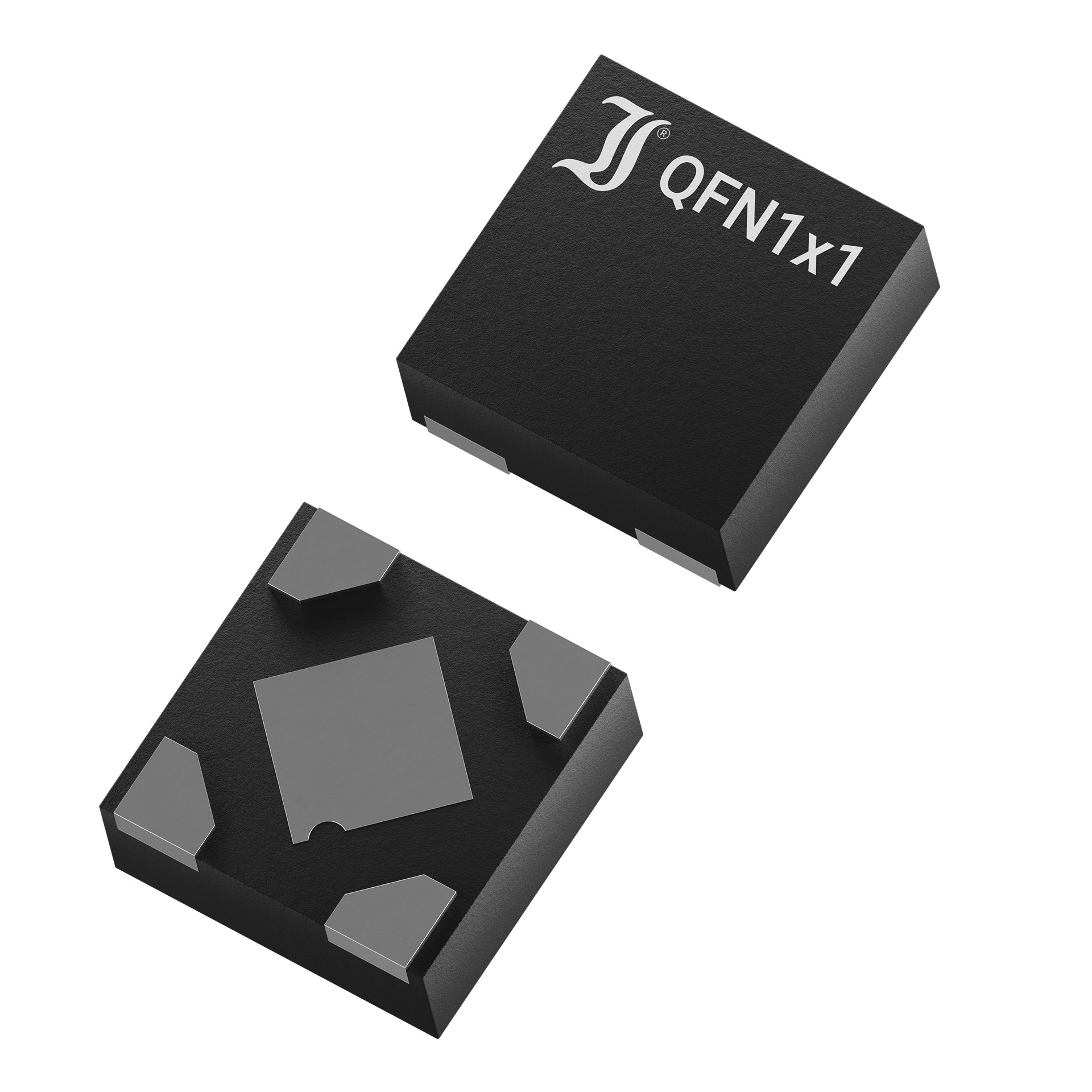

| Package | QFN1x1 | |
| Qualification | Industrial Grade | |
| Config | Enable DFN1x1 | |
| Life Cycle | engineering sample | |
| ESD sensitive | No | |
| Input Voltage | Vin | 6.0 V |
| Output Voltage | VOUTmin | 2.970 V |
| VOUTmax | 3.030 V | |
| Junction Temperature | Tjmax | 125 °C |
| Quiescent Current | IQ | 0.060 mA |
| Dropout Voltage | VD | 0.08 V |
| Output Current | IO | 0.30 A |
