2CL72A
High Voltage Rectifiers

Product information

Product family	High Voltage Rectifiers Rectification of high voltages
Article description	2CL72A HV Diode, D2.5x12, 10000V, 5mA, 80ns
Minimum order quantity	6.000
Stock	42.000
Customs Tariff Number	85411000
RoHS	compliant with exemption
REACH	not declarable
Lead free	No
Halogen free	Yes

Article number	2CL72A

Type	Axial

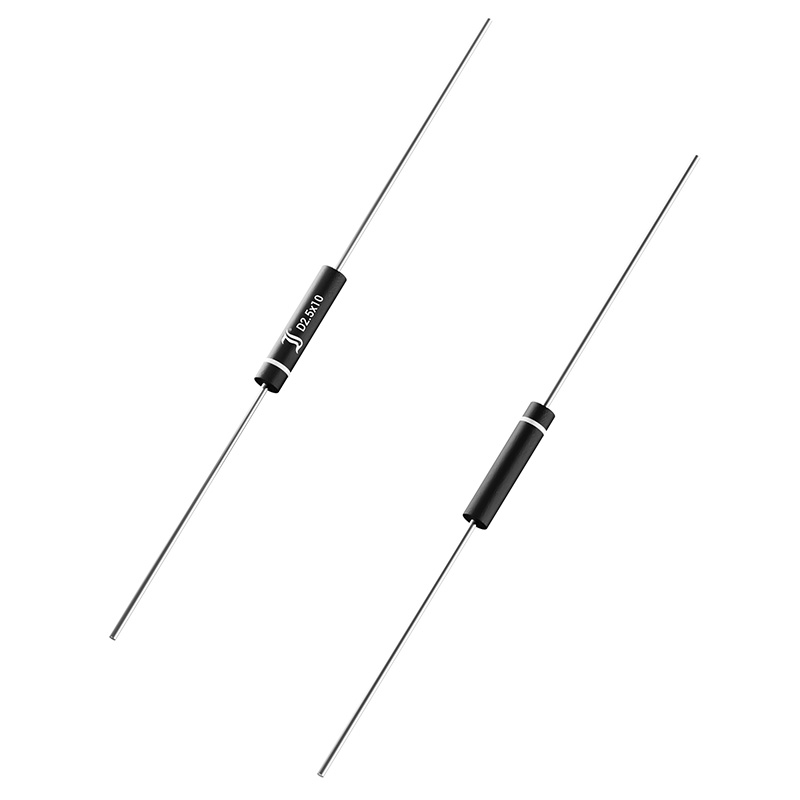

Package	D2.5x10
Qualification	Industrial Grade
Config	Single
Life Cycle	active
ESD sensitive	No
MSL	n/a

Repetitive Peak Reverse Voltage	VRRM	10000 V
DC blocking Voltage	VDC
Maximum Average Forward Rectified Current	IFAV	0.005 A

	@ TLoc	25 °C
	Location	A
Reverse Recovery Time	trr	80 ns
Junction Temperature	Tjmax	120 °C
Peak Forward Surge Current 50Hz	IFSM	0.50 A
Peak Forward Surge Current 60Hz	IFSM
Forward Voltage 25°C	VF	36.00 V
	@ IF	0.01 A
Forward Voltage (b)	VF
	@ IF
	@ Tj
Leakage Current 25°C	IR	2.000 µA
	@ VR	10000.0 V
Leakage Current @Tx	IR
	@ VR
	@ Tj
Junction Capacitance	Cj
	@ VR
